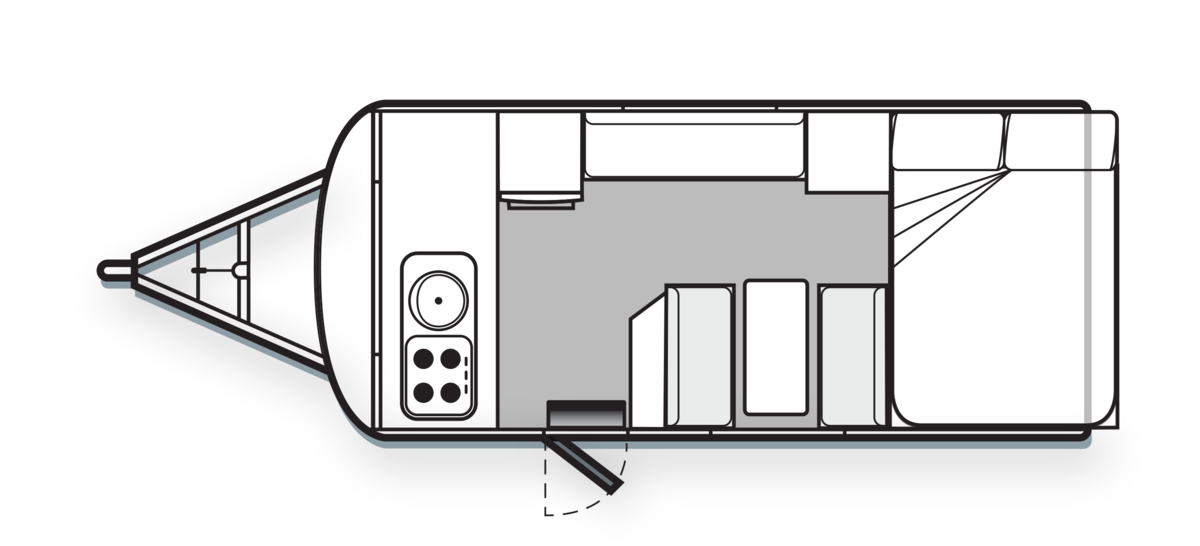

402 Ray Ray Pop Top

Body Length (Exterior): 3890mm
Interior Length: 4500mm
Garage Length (Overall): 5000mm
Travel Height: 2265mm
Interior Height: 2045mm
Width: 2390mm
Ball Weight (Approx): 125kg
Tare Weight (Approx): 1400kg
Berth: 4
Ensuite: No
ATM (Approx): 1700kg

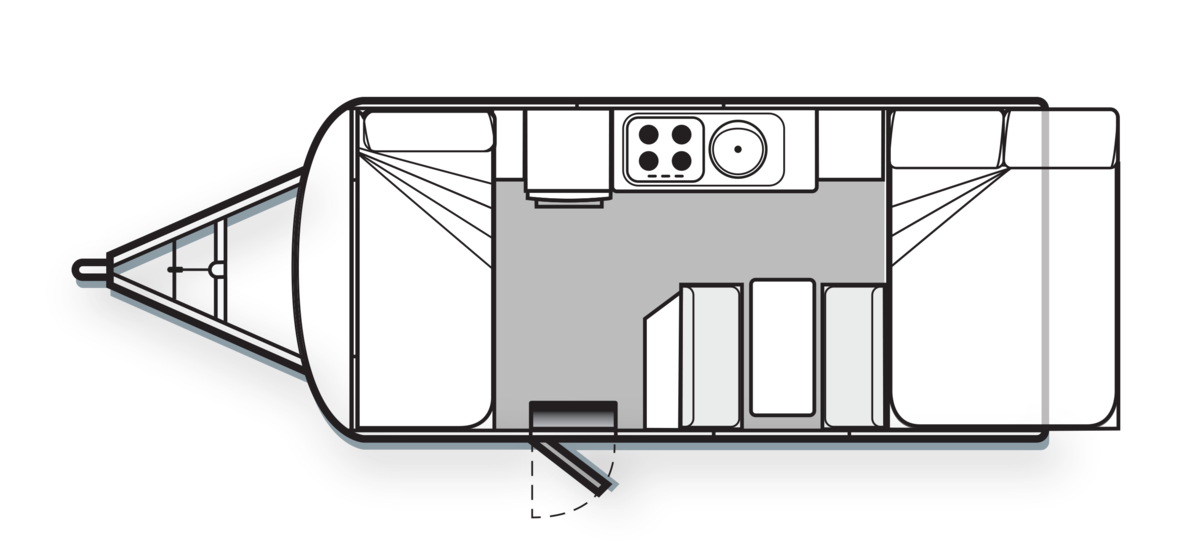

461 Ray Ray Pop Top

Body Length (Exterior): 4700mm
Interior Length: 5250mm
Garage Length (Overall): 5700mm
Travel Height: 2265mm
Interior Height: 2045mm
Width: 2390mm
Ball Weight (Approx): 125kg
Tare Weight (Approx): 1450kg
Berth: 6
Ensuite: No
ATM (Approx): 1950kg

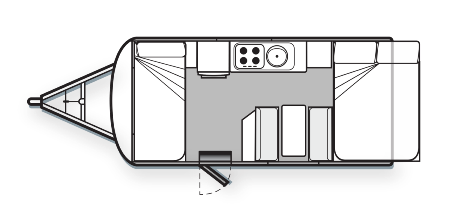

461 ST Ray Ray Pop Top

Body Length (Exterior): 4980mm
Interior Length: 5530mm
Garage Length (Overall): 5980mm
Travel Height: 2265mm
Interior Height: 2045mm
Width: 2390mm
Ball Weight (Approx): 125kg
Tare Weight (Approx): 1530kg
Berth: 4
Ensuite: No
ATM (Approx): 1930kg

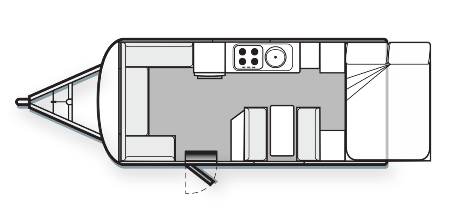

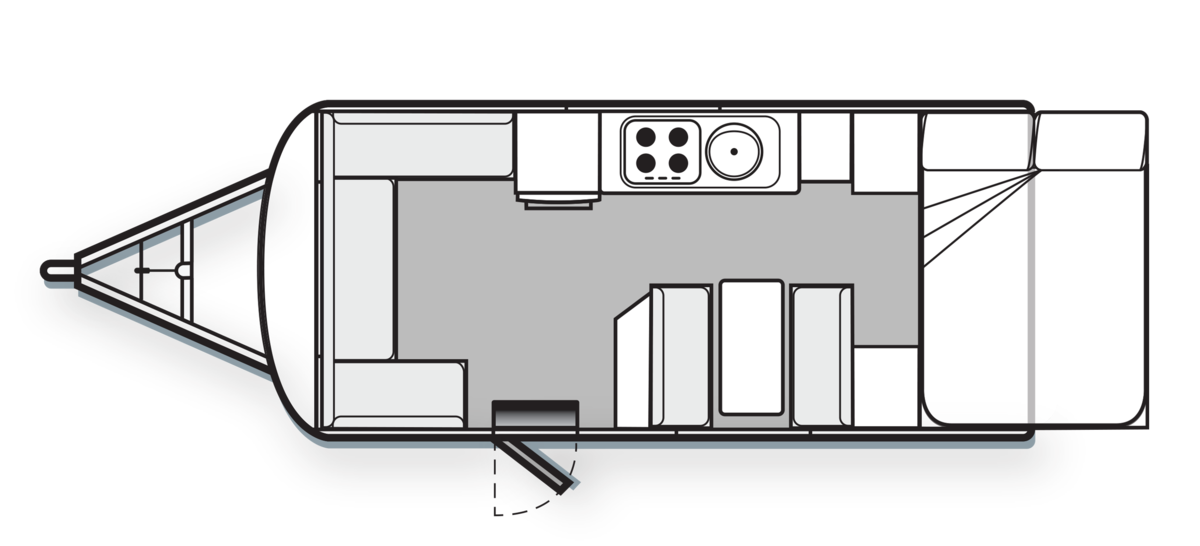

490 Ray Ray Pop Top

Ray Pop Top

Ray Pop Top

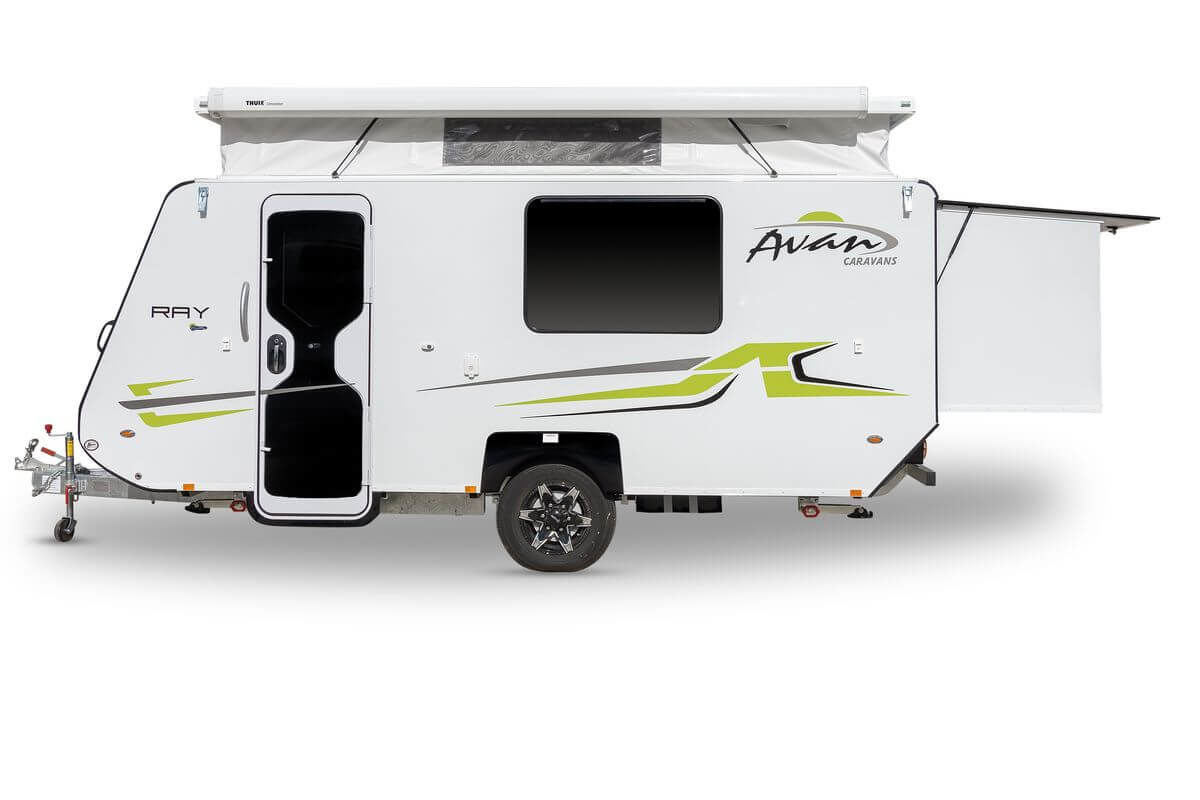

Featuring our unique patented fully insulated solid wall extension, the Avan Ray Slideout range of Pop Tops offers greater versatility and comfort than its imitation. Built with our super-strength smooth panel construction, Ray’s patented slide-out rear double bedroom boasts superior insulation and better security than canvas.

The Avan Slideout is compact and lightweight, so towing is easy with most medium sized cars. Of course, our Slideout is also an exceptional fuel saver.

Download Brochure Pop Tops

Description
Interior Features
Exterior Features
Optional Upgrades
Tech Specs

Setup is delightfully simple, the slideout’s rear door lifts up with the assistance of heavy duty gas struts and the back wall slides smoothly outwards, locking securely into place. Inside, the double mattress folds down onto a solid base. Within seconds, an entire bedroom with large double glazed window is complete. The Avan slideout also features a generous living area because, even with the extension closed, no bed space is taken from the basic floor area. In more ways than one, the Avan slideout extends the boundary for caravan travels. Ray 402 and Ray 490 slide out sleeps up to 4, whilst the Ray 461 can sleep up to 6 with the bunk, and dinette conversion.

Aluminium Framed, Double Glazed & Tinted Windows.

Unique Anti-Jam, Smooth Operation Integrated Blind & Flyscreen System

One Piece Flooring (No Butt Joints)

Two Piece Door and ‘Soft Touch’ Retractable Screen Door for Increased Ventilation

Electric Hot Water Service

93Ltr 3-Way Fridge

Hot and Cold Domestic Flick-Mixing Tap and Deep Bowl Sink

4 x Burner Cook-Top & Griller including 1 x Electric Burner

12V Range Hood with Light

Microwave Oven

TV Aerial Connection

95 Amp Hour Deep-Cycle Battery with Built-In Charger/Transformer & Retractable 10m Lead

Tough Wearing Stain Resistant Wall Panelling

LED Ceiling and Reading Lights

Edge-Banned Cabinets & Benches

Positive Push-Lock Cupboards Latches

S/T Model has Ensuite

Ray 402 - 11′ Extended to 14’8”

Ray 461 - 14′ Extended to 17’2”

Ray 490 - 15′ Extended to 18’2”

Fully Insulated Sandwich Panel Side Walls with Ply-Reinforced Aluminium Outer Skin, Built for Extended Durability and Increased Dent Resistant

Moulded Fibreglass Front & Rear Panels with Premium Quality ‘GelCoat’ Protection

ALKO Shock Absorbers

LED Side, Front and Rear Marker Lights

95Ltr Fresh Water Tank (2 x 95Ltr on Shower Vans)

Lockable Water Filler

2 x 4kg Gas Bottles & Regulator

Awning Light

Interior Boot Light

240V External Power Point

Step Light

Hot-Dipped Galvanized Chassis

Rear Bumper

Light Truck Tyres

Allure Internal Colour Scheme

Awning

Innerspring Mattress (Standard on All Double Bed Layouts)

Microwave

Air-Cconditioner

Radio/CD Player

DVD Player

LCD TV

External Shower

Please refer to table above.

*Add 200mm travel height and allow for extra weight with 'Adventure Pack' option.

Layouts & features are subject to change without notice. Please check with your dealer prior to purchase.

Avan allow an amount of additional weight (Carrying Load) for each individual unit manufactured above the initial manufactured Tare Weight of the unit. This 'Carrying Load' is for the customers individual weight requirements and can be made up of 'any' additional weight they propose to load the unit up of. ie water, food, clothes etc. The standard unit carrying load Avan applies is: Single Axle; 300kg. Outback travel heights increase by 250mm. The tare and tow ball weight is only a guide and will change depending on accessories which are fitted to your van. it is advisable to discuss with your Avan representative.
* Pricing is based on a standard 2019 model. Drive away price is inclusive of all on road costs. Additional weight tax may apply for NSW registered vehicles.
